Have a need for a large steel structure as part of a public works project?
We've partnered with a large steel structure manufacturer so we can meet all your Park and Rec needs.

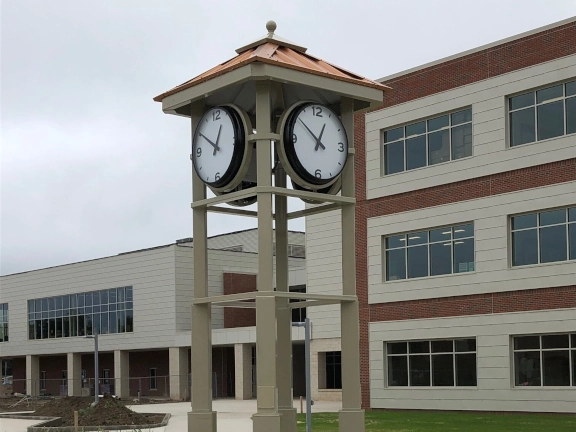

Clock tower
We have people in place who can bring your project all the way.

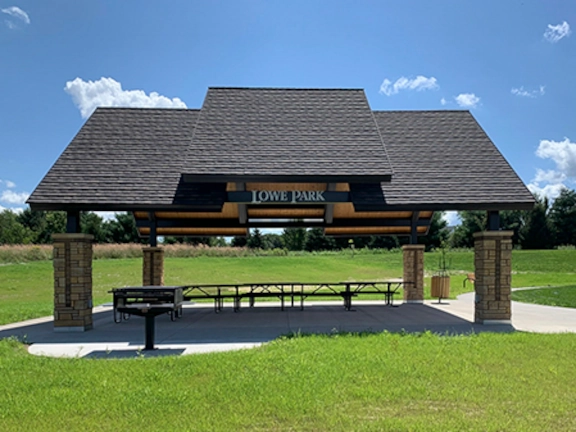

Custom Pavilion
Send us your "back of the envelope" sketch.
We will fill in the blanks.

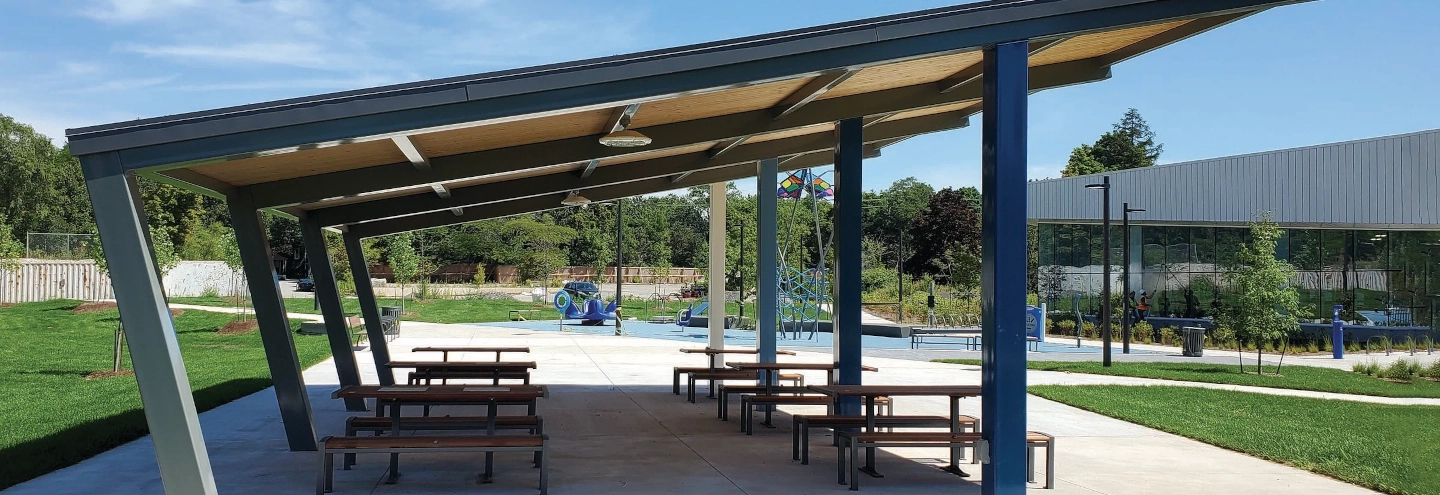

Custom Shade Shelter

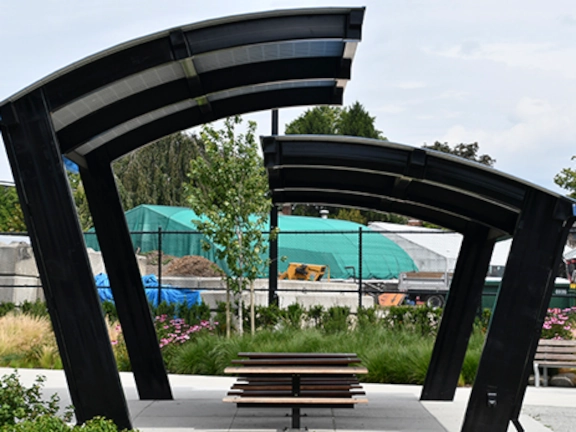

We call this the Arms Pavilion.
Custom Steeltown Shade Shelter

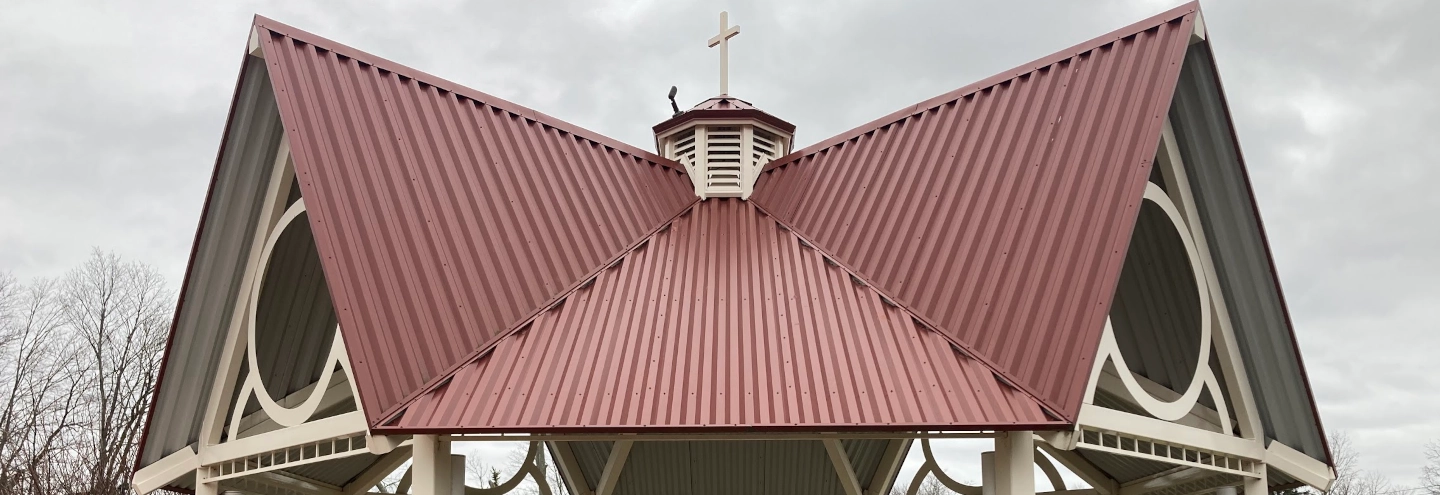

A glorious eight sided custom, steel, shade pavilion

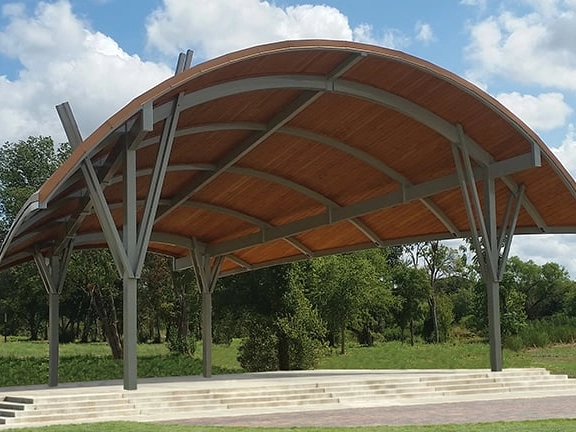

Tapered Barrel Pavilion
This pavilion looks like half a barrel
Baldwin Pergoals did not build these structures, this section explains that we have the capability to design custom pavilion-like structures and to oversee the manufacture and installation of complex steel projects.
The rigidity of the pergola is derived from the stability of the connection to the Earth. The importance of big, solid footings which are placed accurately, cannot be overstated.
The rigidity of the pergola is derived from the stability of the connection to the Earth.
Concrete footings: 14" Diameter minimum for 10" square and 12" round columns.
Our site plan will show a diagonal dimension. This helps you square the footings to each other.
Concrete pad: Should be poured 12" deep in the area where the columns will stand.
Stone wall: It's best to drill 18" deep into the well built, mortared stone wall.
Concrete pier: Wet set our 5/8" stainless steel rods into the footing then build the pier
Tolerance factor: Footings should be placed accurately with an overall error margin of less than an inch.
Conduit in footings: Bring a sweep into your footing with the center about three inches off center.
Deck mounted: Ask us for PDF drawings of best practice connection methods.
It is the customers responsibility to make sure that an adequate mounting surface is in place. The customer is responsible for
supplying relevant dimensions such as the depth and width of column centers and overall height requirements for the structure.
All dimensions, including overhangs and member spacing are completely customizable during the design process. At the time of installation, nothing can be changed.
Standing a column up onto a concrete footing. We previously drilled the footing and epoxied a 5/8" stainless steel threaded rod into the footing.
Gather Your Measurements
Measurements are taken from column centers, our typical overhang is 24 inches
A freestanding pergola that measures 120" x 120" on center will have an overall size of 168" x 168"
An attached pergola that measures 120" x 120" on center will have an overall size of 144" deep x 168" wide
All dimensions, including overhangs and member spacing are completely customizable
Use our Pricing Tool
Our pricing tool let's you design your pergola in real time and get an actual price
You will see a plan view CAD drawing of your pergola
You can consider our electrical options, a shade system and/or our installation service
You will have the ability to save your project into our database then share the link with your team for group collaboration
Send Us Photos
Your photos help us serve you better in the design phase
Please send us pictures of your proposed site and the exterior of your home
Pictures can be sent via email to sales@baldwinpergolas.com
...or via text to (860) 500-1741. Our pricing tool also allows one to upload photos and various file types
Speak With Our Team
Once you have sent us your measurements and pictures we will reach out to you
Our project manager, Michael Hurlburt, will work out all of the important details
Once we have an understanding of your vision we will produce a set of drawings and a proposal
If you accept our proposal we require a 50% deposit to begin production
Consider the Options
We offer a wide variety of options for you to consider
Decorative Details: We offer an array of column styles and rafter contours
Finishes: Custom colors are available, including color matched finishes
Electrical: We can factory prewire your structure to accommodate lighting, fans, heaters, and more
Confirm The Details
Review and confirm your pergola or pavilion drawings
Review your electrical and shade system options
Sign and return the proposal
Once a signed proposal is returned and a deposit is received, we will begin production
Testimonials
Max,
Thank you, we are very happy with the pergola!! It looks great and the size and height are perfect, like you said. My husband and father-in-law built this entirely in the rain. It was a lot of fun for us to watch and hold umbrellas for them. They did a great job and even finished in a day and a half. Then a few days later, an extremely bad storm hit with nearby tornadoes and major tree damage and fallen trees throughout our entire town. The pergola remained intact, so we know that structurally it is good too.
Well it is finally sunny again, so we could finally see how the sunlight filters in on the patio. The pergola really makes the patio an inviting place to be. Looking forward to many great times in our new outdoor area.
Thanks again!
Kathleen Davis
I have been meaning to send you these pictures of our pergola, showing the Shade Tree awnings, for over a year now. The pictures were taken in September this year, about a year after the pergola was first assembled. My brother and I had just finished washing the pergola with Murphy Oil Soap, and it had that wonderful, like new, honey glow.
Joe and Terry Mitlyng
I thought I would share with you some of the photos I took tonight of the grape arbor! It looks beautiful--I almost hate to cover it with grapes!
Missy Sienna
As I mentioned to you, we never thought we would be discussing another pergola within 7 years but it is a testament to the quality of your product and service that we did not even consider contacting anyone else.
Should we ever build another house, it will be pergola #3 !
Thanks again
Monica Nakelski
The pergola is up and looks great. You made this task so easy, we really reaped the benefit of your experience. I will send you a photo. Thanks for all your help.
Tom Petrelli
Max,
The pergolas arrived right on time and with all needed material. I have two of the units installed and one to go.
I can see that a lot of thought went into the design and production. The units are going up with only modest adjustments to fit some job site pecularities. Excellent workman ship. I am very very happy with the product.
Bill Adams
Max and Chris, Just wanted you to know how pleased I am with the pent roof you designed and fabricated. The fit came out perfectly, installation was easy, it\'s performing as designed (including headroom for my daughter\'s 6\'7\" fiance), and looks great, of course. Many thanks!
Best,
John Endicott
The pergola was an easy set up and looks beautiful...just what the yard needed. I will send you pictures. Thanks again.
Dan and Carolyn DeBlasio
Your pergola went together with ease. We were impressed with the precision and craftsmenship of each piece of the pergola. There was minimal work to align the pieces into there proper position. I wanted to also put a plug in for an opportunity to be an installer of baldwin pergolas and other structures if you needed a crew to install in my location (PA).
Thanks again!
Dennis Hosler, Hosler's Homescapes
The Pergola is GREAT! What a difference it makes to the house ... inside and out. The height (for this sized Pergola) seems like it is matched up perfectly. The effect is a room outside the house. Let's see how many 'Wow's' we get Friday night. You should have left some of your business cards. My daughter (Sarah) loved the butterfly joint!
Joe Holland
